DONNEES TECHNIQUE
|

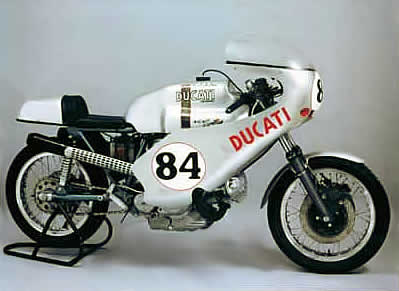

750 IMOLA
1973 |
SPECIFICATIONS
|
|
|
|
Al�sage x course (mm.) |
86x64.5
|
Bore stroke (mm.) |
|
Cylindr�e (cc) |
748.95 |
Capacity (cc) |
|
Puissance / nb tours |
85/10500 |
HP/rpm |
|
Ouverture � l'admission |
70�
|
Inlet opens (BtdC) |
|
Fermeture � l'admission |
100�
|
Inlet closes (ABDC) |
|
Ouverture � l'�chappement |
100�
|
Exhaust opens (BBDC) |
|
Fermeture � l'�chappement |
70�
|
Exhaust closes (AtdC) |
| Jeux aux soupapes d'admission |
0.10-0.15
mm. |
Valve clearance opening rockers |
|
Jeux aux soupapes d'�chappement |
0-0.05
mm. |
Valve clearance closing rockers |
|
Rapport de compression |
10.5 :
1 |
Compression ratio |
| Distribution d'allumage (twin) |
Ducati |
Distributor ignition (twin) |
|
Avance � l'allumage |
8� |
Ignition advance |
|
Bougie (Champion) |
diam. 14 N2G -
diam. 10 Z6 |
Spark plug (Champion) |
|
Alternateur (Ducati) |
12V -
150W |
Generator (Ducati) |
|
Carburateur (Dell'Orto) (mm.) |
40 |
Carburettor (Dell'Orto) (mm.) |
|
Capacit� d'huile (litre) |
5
|
Oil capacity (liter) |
|
Nombre de vitesses |
5 |
No. gears |
|
Double frein � disque avant (mm.) |
diam. 280
(Lockheed) |
Dual disc front brake (mm.) |
|
Frein � disque arri�re (mm.) |
diam. 229
(Lockheed) |
Rear brake disc (mm.) |
|
Capacit� du r�servoir d'essence
(litre) |
24 |
Fuel tank capacity (liter) |
| Volume de l'huile de fourche (Marzocchi) |
Dexron ATF 230
cc |
Fork oil capacity (Marzocchi) |
|
Pneu avant (Dunlop) |
3.25"x18" KR76
|
Front tires (Dunlop) |
|
Pneu arri�re (Dunlop) |
3.50"/4.00"x18"
KR83 |
Rear tires (Dunlop) |
|
Poids � sec (Kg) |
158 |
Peso a secco (Kg) |
| Vitesse max (Km/h) |
------ |
Max speed (Km/h)
|
